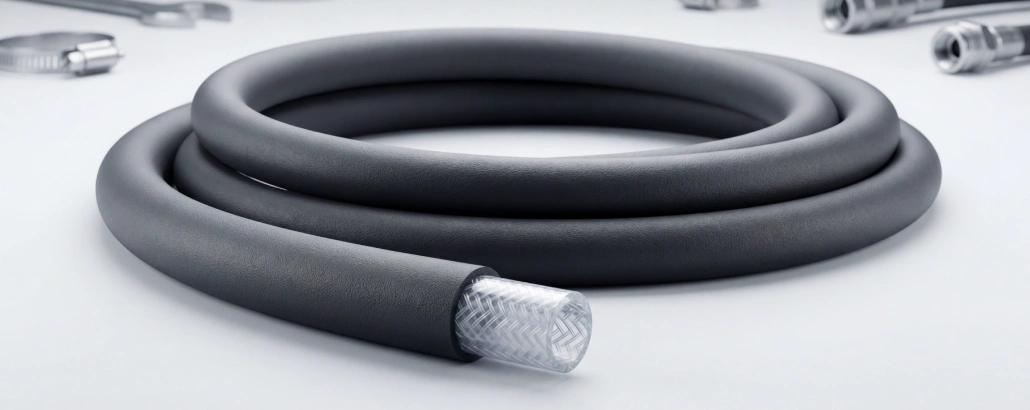

Rubber Covered PTFE/PFA Hose
EPDM Rubber covered hoses are designed for the chemical industry, foodstuff, pharmaceutical and cosmetic industry.
Tube
Inner tube of PFA or PTFE
Reinforcement
Multi-layered rubber, polyester cord, antistatic copper wire and a double helix wire for support.
Cover
Smooth EPDM rubber
Fittings
Male, female, flanged, Triclover and PTFE flared / encapsulated fittings available in all the material.
RUBBER COVERED PFA/PTFE HOSE
Professional Grade Plain/Smooth Bore with Single SS Braid
Technical Specifications
Comprehensive Performance Data & Measurements
| Inner Diameter (ID MM) | Outer Diameter (OD MM) | Working Pressure (BAR) | Burst Pressure (BAR) | Minimum Bend Radius (MM) |
|---|---|---|---|---|
| 13 | 25 | 16 | 64 | 100 |
| 20 | 31 | 16 | 64 | 130 |
| 25 | 37 | 16 | 64 | 180 |
| 32 | 44 | 16 | 64 | 220 |
| 38 | 51 | 16 | 64 | 260 |
| 50 | 66 | 16 | 64 | 330 |
| 63 | 79 | 16 | 64 | 440 |
| 76 | 92 | 16 | 64 | 520 |
