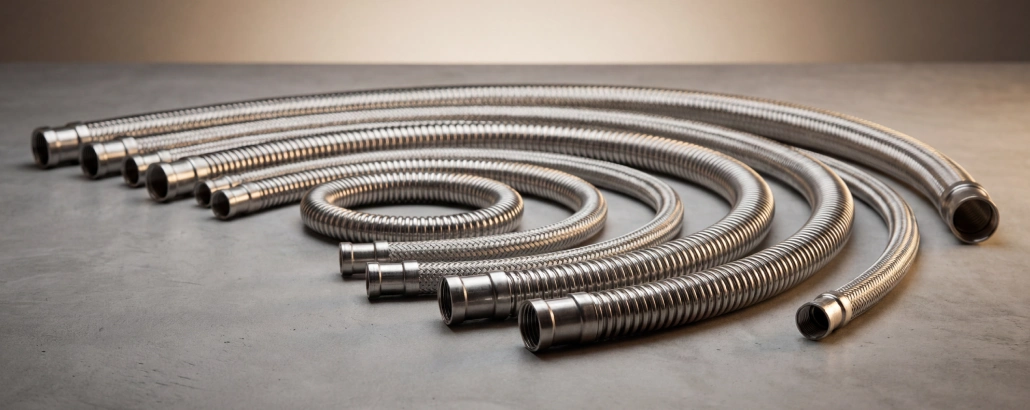

SS Wire Braided Corrugated Hoses

Stainless steel corrugated flexible hoses are offered from 6mm (1/4’) to 300 mm (12’). The annular corrugated hose provides the flexibility and pressure tight core of the assembly.

Advantages

Suitable for wide temperature range (-270°C to700°C).

Compensates for thermal expansion contraction in the piping system.

High physical strength.

Fire resistant.

Moisture resistant.

Longer life.

Good corrosion characteristics.

Resistant to abrasion, penetration and damage.

Connects misaligned rigid piping absorbs or dampens vibration and similar equipments.

A flexible and quick option for rigid piping in difficult locations.

Technical Specifications

Comprehensive Performance Data & Measurements

Nominal Bore (NB mm)	Minimum Bend Radius		Without Braid		Single Braid		Double Braid
Nominal Bore (NB mm)	Static (mm)	Flexing (mm)	Max Working Pressure (kg/cm²)	Test (kg/cm²)	Max Working Pressure (kg/cm²)	Test (kg/cm²)	Max Working (kg/cm²)	Test Pressure (kg/cm²)
6	25	100	4	6	100	150	160	240
10	40	150	4	6	90	135	144	216
12	50	200	3	4.5	80	120	128	192
16	50	200	3	4.5	70	105	112	168
20	70	200	2	3	64	96	102	153
25	90	200	2	3	50	75	80	120
32	110	250	1.5	2.3	40	60	64	96
40	130	250	1.5	2.3	30	45	48	72
50	175	350	1.0	1.5	28	42	44	66
65	200	410	1.0	1.5	24	36	38	57
80	205	450	1.0	1.5	18	27	28	42
100	230	580	0.8	1.2	16	24	26	39
125	280	660	0.6	0.9	12	18	20	30
150	320	815	0.6	0.9	10	15	16	24
200	435	1015	0.5	0.75	8	12	12	18

The fitting are available in Mild Steel, Carbon Steel, Stainless Steel, Brass, Gun Metal, Rolled bronze. Flange connection with fixed & floating flanges to meet IS, DIN, ANSI* ASA standards or as per customer’s specification.
