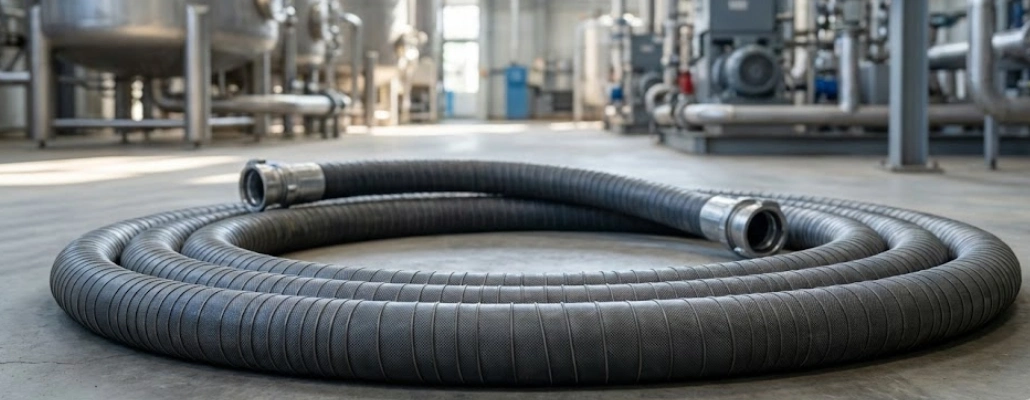

XLPE / UHMW Hose

XLPE hose is designed to handle many types of chemicals and solvents in both full suction and discharge applications. The clear cross-linked polyethylene tube will handle many types of chemicals, acids and solvents without leaching and contaminating the product conveyed.

Tube

Cross linked polyethylene transparent (XLPE)

Reinforcement

Yarn and wire helix reinforcement with anti-static copper wire

Cover

Smooth EPDM rubber

Fittings

Male, female, flanged, Triclover and fittings available in all the material.

Technical Specifications

Comprehensive Performance Data & Measurements

Inner Diameter (ID MM)	Outer Diameter (OD MM)	Working Pressure (BAR)	Burst Pressure (BAR)	Minimum Bend Radius (MM)	Vacuum MM of Hg
20	29	10	40	65	760
25	36	10	40	90	760
32	46	10	40	150	760
38	52	10	40	100	760
50	61	10	40	150	760
63	74	10	40	280	760
76	86	10	40	350	700
101	118	10	40	760	700
