Silicone Hose

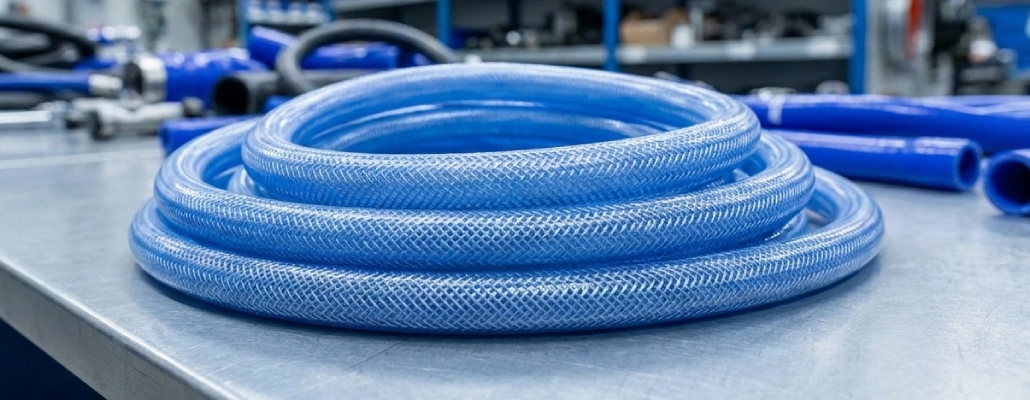

Hydromac Hydraulics Platinum-cured silicone hose is internally reinforced with polyester yarn.
SUITABLE FOR
PHARMACEUTICAL, BIO – MEDICAL, COSMETICS, FOOD AND BEAVARGES.
Fittings
Male, female, flanged, Triclover and fittings available in all the material.
Silicone Hose
Professional Grade Plain/Smooth Bore with Single SS Braid
Technical Specifications
Comprehensive Performance Data & Measurements
| Inner Diameter (ID MM) | Outer Diameter (OD MM) | Working Pressure (BAR) | Burst Pressure (BAR) | Minimum Bend Radius (MM) | Vacuum MM of Hg |
|---|---|---|---|---|---|
| 13 | 23 | 10.5 | 42 | 50 | 760 |
| 16 | 25 | 10.5 | 42 | 65 | 760 |
| 20 | 29 | 10.5 | 42 | 65 | 760 |
| 25 | 36 | 10.5 | 42 | 90 | 760 |
| 38 | 48 | 10.5 | 42 | 100 | 760 |
| 50 | 61 | 8.5 | 35 | 150 | 760 |
| 63 | 74 | 8.5 | 35 | 280 | 760 |
| 76 | 86 | 7 | 28 | 350 | 700 |
| 101 | 117 | 3 | 12 | 400 | 600 |
