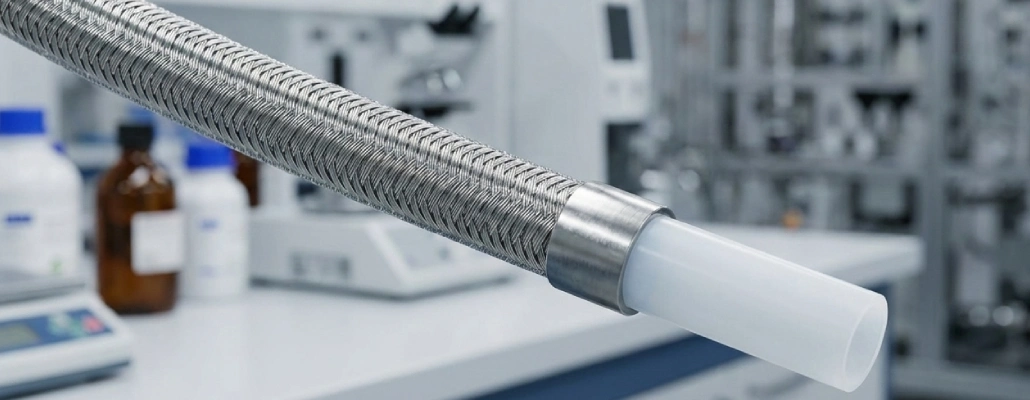

Smooth Bore / Plain PTFE Hose
Plain PTFE Tube with high tensile AISI 304 Stainless Steel Braided Hose for Industrial use.
Application
Hydromac Hydraulics hose and assemblies can be used at temperatures ranging from -70° C to 260° C. Suitable for most known chemicals, acids, oils, corrosives, alkalis, gases, steam, pharmaceutical and foodstuffs industries.
Fittings
Male, female, flanged, Triclover and PTFE flared / encapsulated fittings available in all the material.
PTFE Hose Specifications
Professional Grade Plain/Smooth Bore with Single SS Braid
Technical Specifications
Comprehensive Performance Data & Measurements
| Inner Diameter (ID MM) | Outer Diameter (OD MM) | Working Pressure (BAR) | Burst Pressure (BAR) | Min. Bend Radius (MM) |
|---|---|---|---|---|
| 5 | 7.5 | 250 | 750 | 50 |
| 6.5 | 9 | 230 | 700 | 70 |
| 8.0 | 10.8 | 190 | 580 | 90 |
| 9.5 | 12.3 | 180 | 550 | 100 |
| 12.7 | 15.7 | 145 | 440 | 110 |
| 16.0 | 19 | 130 | 400 | 150 |
| 19.0 | 22.1 | 80 | 240 | 200 |
| 25.4 | 29.5 | 65 | 200 | 300 |
