Sand / Shot Blasting & Cement Grouting Hose (GSC)
Diffrent types- TYPE I : W.P. 7 Kgf/cm2 B.P. 35 Kgf/cm2
- TYPE II : W.P. 10 Kgf/cm2 B.P. 50 Kgf/cm2
- TYPE III : W.P. 14 Kgf/cm2 B.P. 70 Kgf/cm2

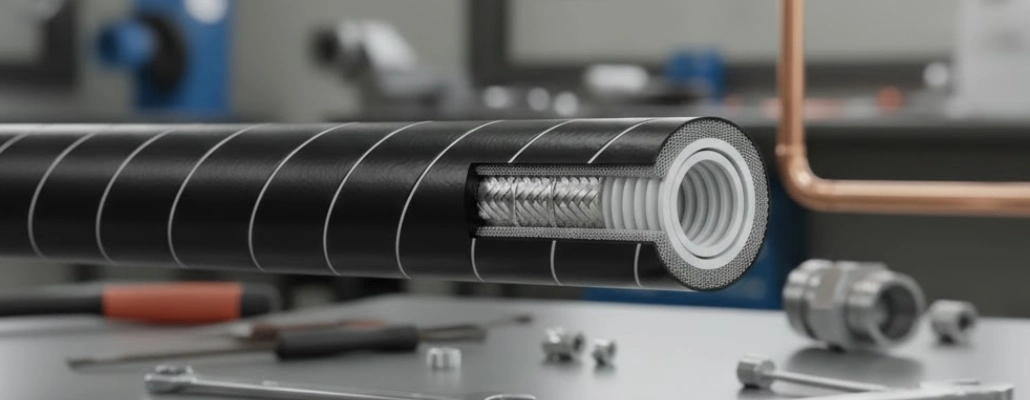

Construction
- Tube : Highly abrasion resistant rubber
- Reinforcement : Textile reinforcement
- Cover : Weather and abrasion resistant
- Electrical continuity : Can be provided on request
Applications
For cleaning and blasting of castings, metal, stone and concrete surface.
Sand / Shot Blasting & Cement Grouting Hose (GSC)
Technical Specifications
Comprehensive Performance Data & Measurements
| I.D. inches | I.D. mm | O.D. mm | Min. bend radius mm |
|---|---|---|---|
| 3/4 | 19.0 | 40 | 170 |
| 1 | 25.4 | 46 | 200 |
| 1 1/4 | 31.5 | 55 | 230 |
| 1 1/2 | 38.0 | 60 | 285 |
| 2 | 50.0 | 73 | 450 |
| 2 1/2 | 63.0 | 87 | 570 |
| 3 | 76.0 | 98 | 700 |
| 4 | 102.0 | 125 | 900 |
